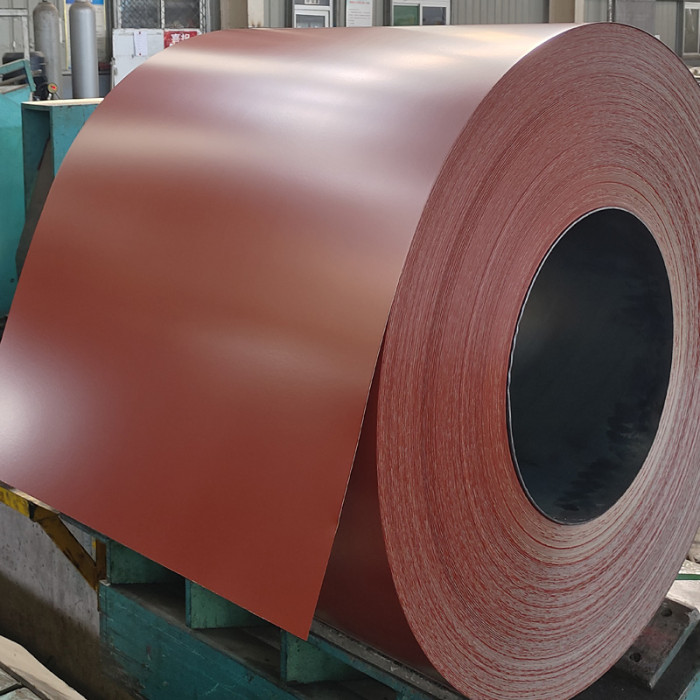

Prepainted steel coil PPGL/PPGI
| Share | |
|---|---|
| Categories | Steel Coils |
| Brand | Fanda Steel Coil & Guardrail Manufacturer |
| Model | CGCC/ASTM A755 |
| Product name | Prepainted steel coil |
| Surface paint coating | PE or PVDF paint |
| Color | RAL code |
| Top paint coating | 15-25micro |
| Bottom paint coating | 5-15micro |
| Coil ID | 508 or 610mm |
| Coil weight | 3-6 tons |
| Hardness | Soft or full hard |
| Thickness | 0.12mm-1.5mm |
| Width | 600mm-1250mm |
| Certificate | ISO9001, SGS etc |
| FOB port | Tianjin or Qingdao port of China |
| Terms of Payment | L/C, T/T |
Detail Information
Introduction of Prepainted steel coil
Prepainted steel coil (PPGI/PPGL) is produced from hot-dipped galvanized or Galvalume steel coil, followed by chemical pretreatment, primer and topcoat application, and thermal curing. Fanda offers both PE (polyester) and PVDF (fluorocarbon) coating systems, with optional protective film lamination. Colors are available per RAL chart. Our products feature excellent weather resistance, formability, and aesthetics — widely used in building facades, roofing, home appliances, transportation equipment, and more.
The parameter of Prepainted steel coils
| Item | Parameter | ||
| Base Material | Hot-dipped GI / GL coil (DX51D, S250GD, etc.) | ||
| Thickness | 0.12-1.5mm | ||
| Width | 600mm – 1250mm (customizable) | ||
Coating Thickness | Topcoat: 15–25μm (PE) / 20–30μm (PVDF) | ||
Coating Type | PE (Polyester) / PVDF (Fluorocarbon) | ||
Back Coating | 5–15μm epoxy or polyester | ||
Protective Film | Optional (PE film, thickness 30–80μm) | ||
Color | RAL color series (customized) | ||
Coil ID | 508mm / 610mm | ||
Standard | ASTM A755, JIS G3312, EN 10169 | ||

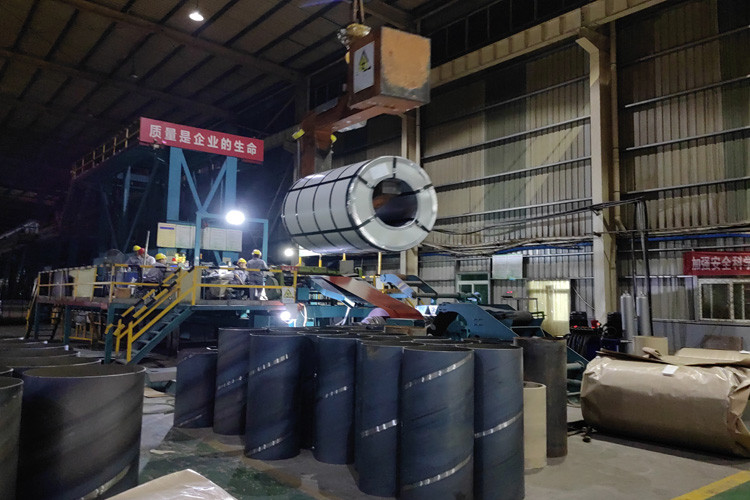

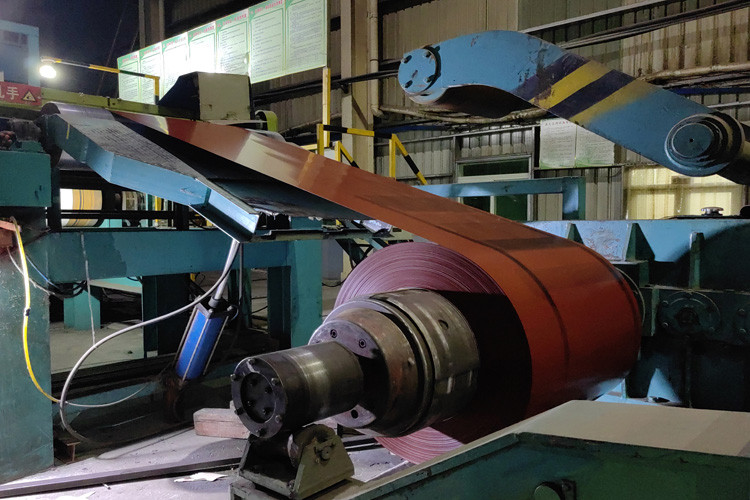

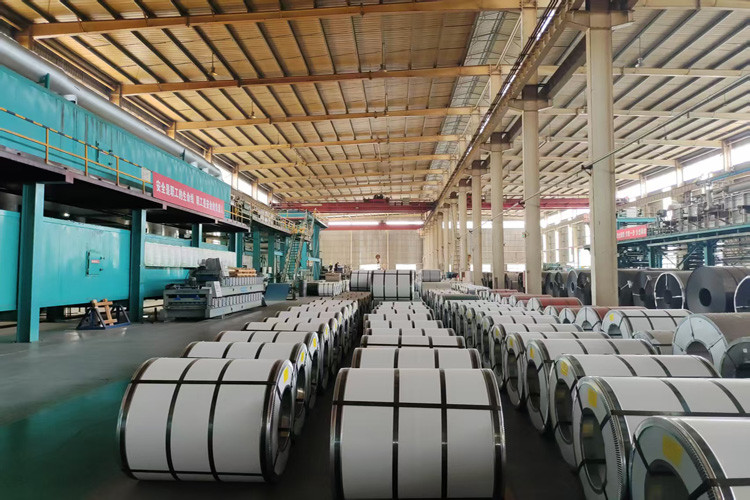

Prepainted steel coils production workshop
| Key Features & Advantages | Applications | ||
| 1. PE Coating- Cost-effective, rich colors. Suitable for general outdoor environment. Service life: 5–10 years | Roofing & Wall Cladding: Metal roof panels, wall panels, sandwich panel facings, corrugated sheets | ||
| 2. PVDF Coating- Superior weather resistance, UV resistance, chemical resistance. Service life: 20–30 years. Ideal for coastal or heavy industrial areas | Steel Structure Buildings: Envelope systems for factories, warehouses, exhibition halls, stadiums | ||
| 3. Protective Film- Optional PE lamination prevents scratches during transport and processing. Removable after fabrication | Home Appliances: Refrigerator side panels, washing machine housings, microwave panels, AC covers | ||
4. Excellent Formability- Suitable for stamping, bending, roll-forming, deep drawing without coating peeling | Auto interior trim, truck panels, bus shelters, billboards | ||
5. Rich Colors and Eco-friendly: Full RAL color range, also available per customer sample; RoHS compliant. Heat-reflective options available | Interior Decoration: Ceiling panels, partition boards, security door panels |
Why Choose Fanda Prepainted Steel Coil?
| Why Choose us? | |||
| 1. 15+ years of steel industry experience | |||
| 2. Strict supplier sourcing – no downgraded materials | |||
| 3. Flexible MOQ – suitable for small and large projects | |||
4. Global export experience (Southeast Asia, Africa, Middle East, South America) | |||
5. Full technical support and after-sales service | |||
6. Welcome to visit our factory and we also visit some of our clients each year. |

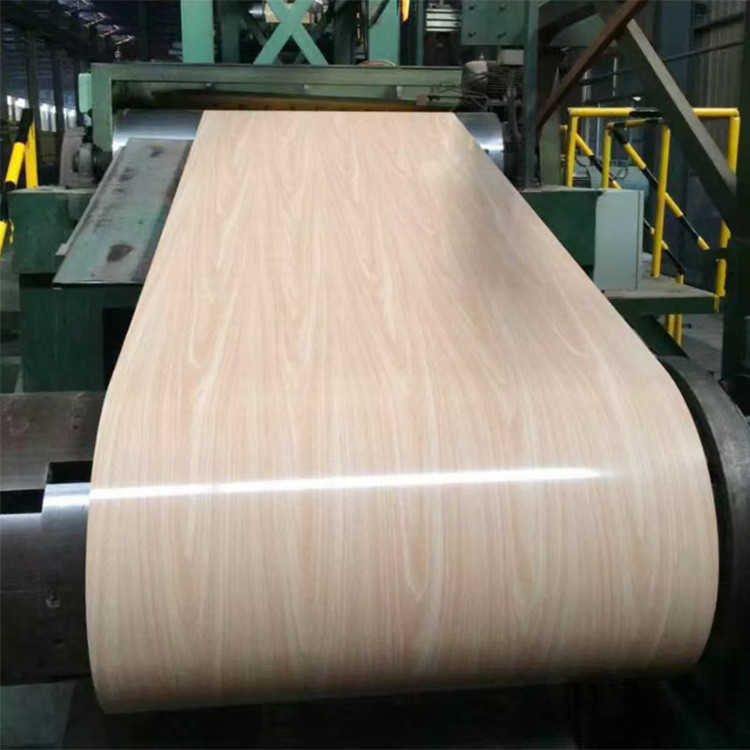

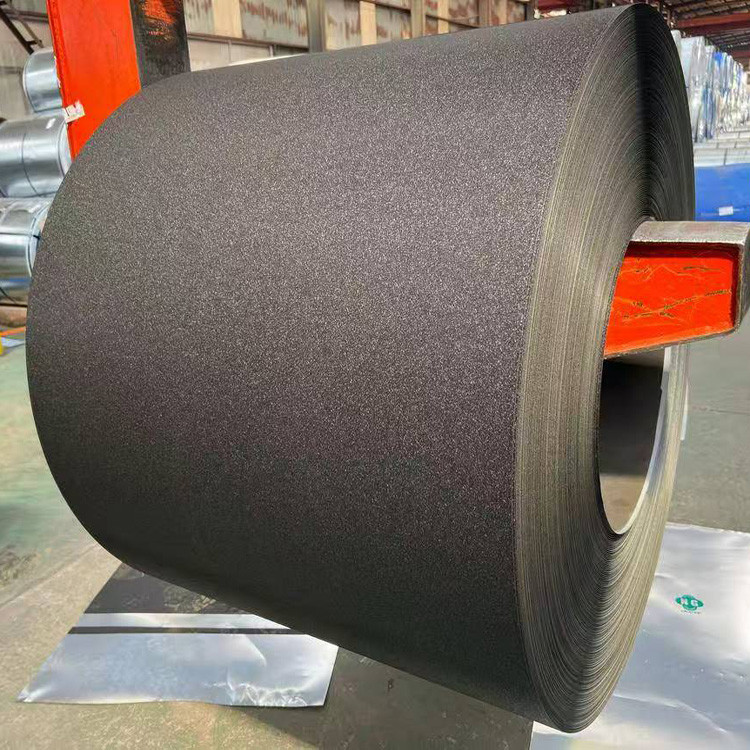

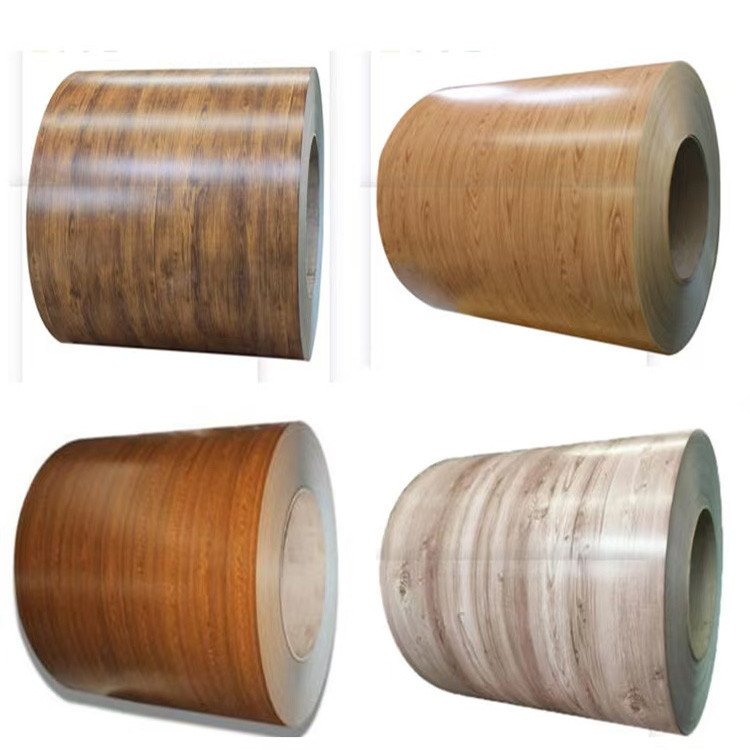

Wood pattern or Matt color steel coil
