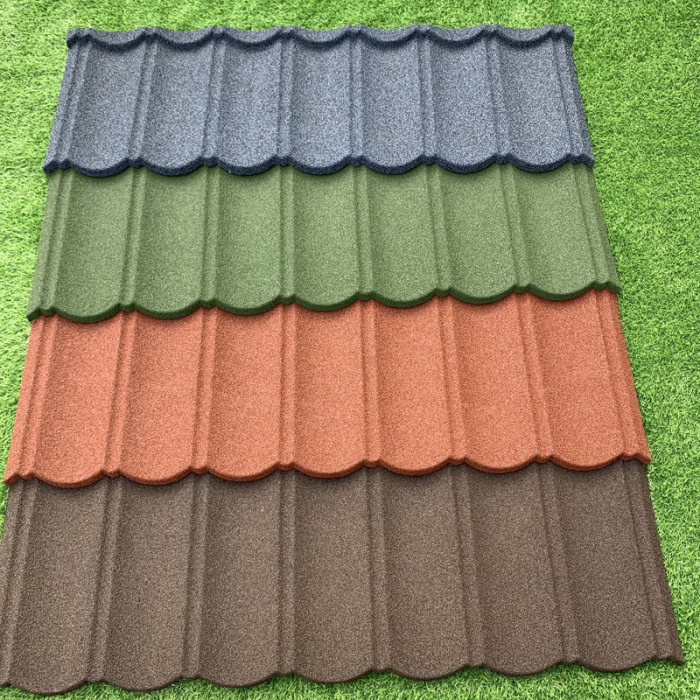

Stone coated metal roof tiles
| Share | |
|---|---|
| Categories | Roofing Sheet |
| Brand | Fanda Steel Coil & Guardrail Manufacturer |
| Product name | Stone coated metal roof tiles |
| Profile | Bond/Classic/Groove/Milano/Roman/Shingles/Slate/Wood |
| Coating type | color stone |
| Package weight | 2.5-3.5 tons |
| Thickness | 0.2mm-0.6mm |
| Tile Size | 1340x420mm |
| Cover size | 1290x370mm |
| Color | customized |
| Unit weight | 2-3.5kg |
| FOB port | Tianjin or Qingdao port of China |
| Terms of Payment | L/C, T/T |
Detail Information
Stone Coated Metal Roof Tiles | Fanda
Stone coated metal roof tiles are manufactured from Galvalume steel base with natural stone granules on the surface, combining the durability of metal with the aesthetic of stone. Lightweight, weather-resistant, and easy to install — ideal for pitched roofs on villas, resorts, residential houses, and commercial buildings. Fanda offers various tile profiles (flat, curved, Roman, etc.) with colors available per RAL chart or customer sample.
The specifications of stone coated metal roof tiles
| Item | Parameter | ||
| Base Material | Galvalume steel coil (AZ50 – AZ150) | ||
| Thickness | 0.2mm-0.6mm | ||
| Stone Coating | Natural basalt / granite granules | ||
Top Coating | Acrylic resin (clear coat) | ||

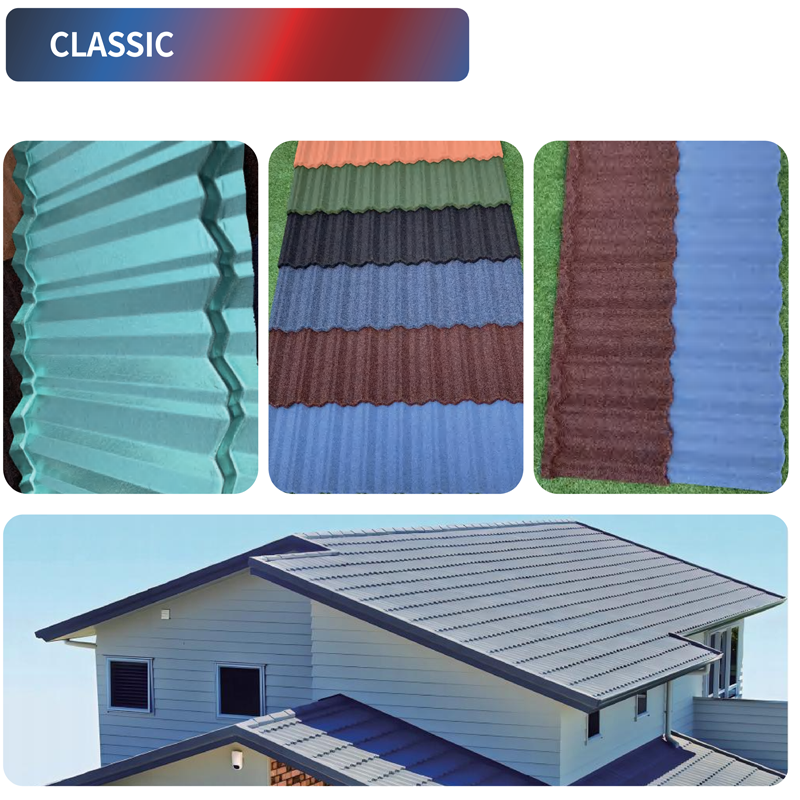

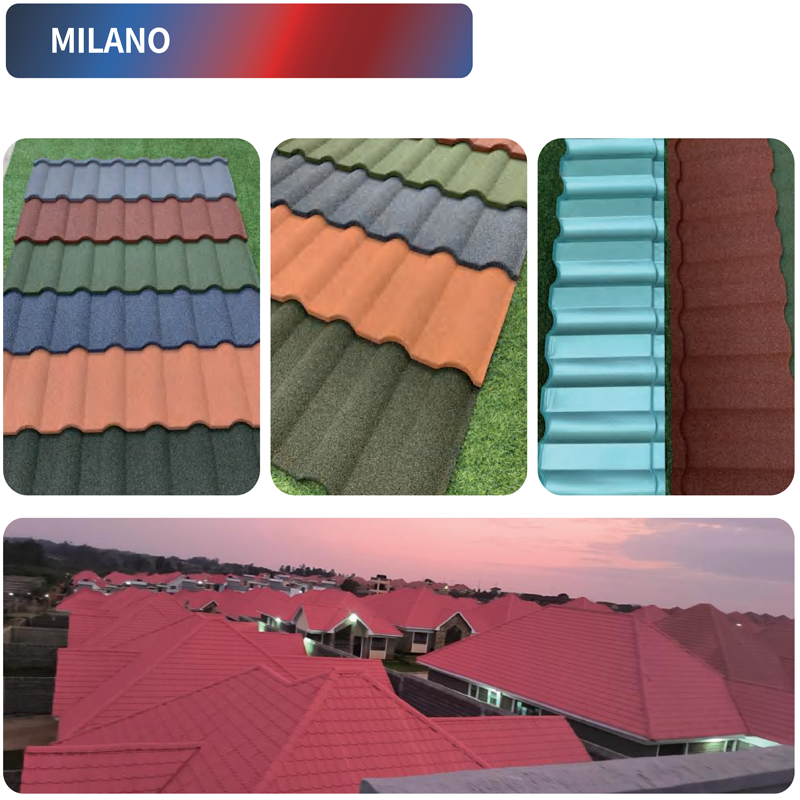

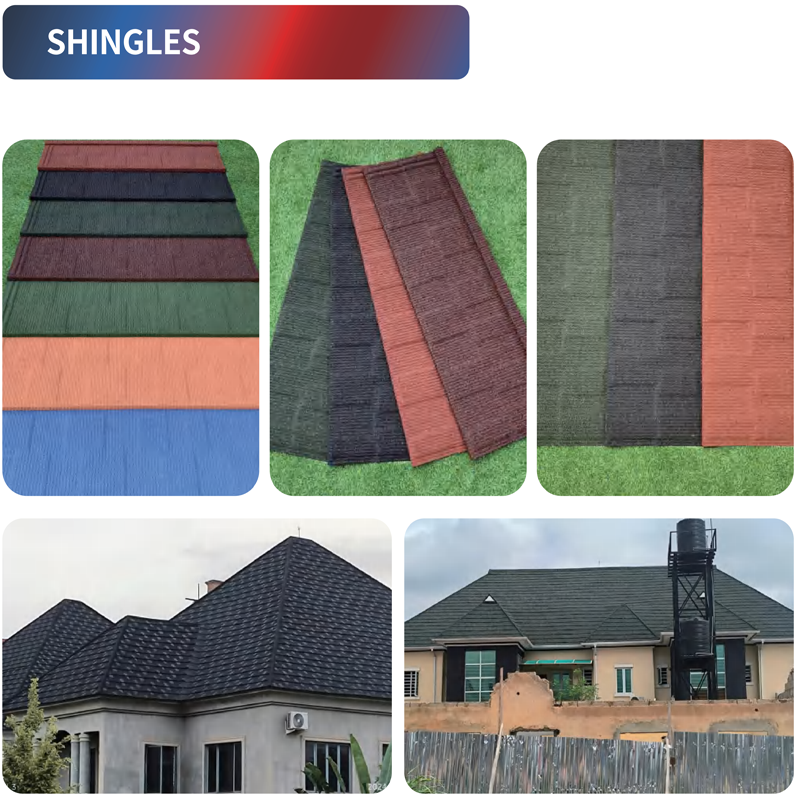

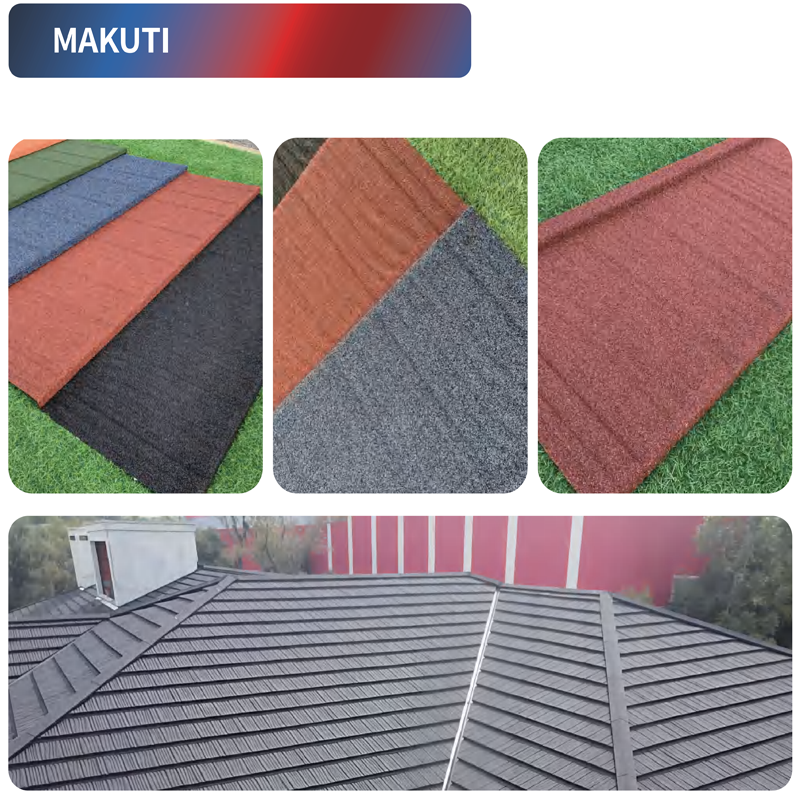

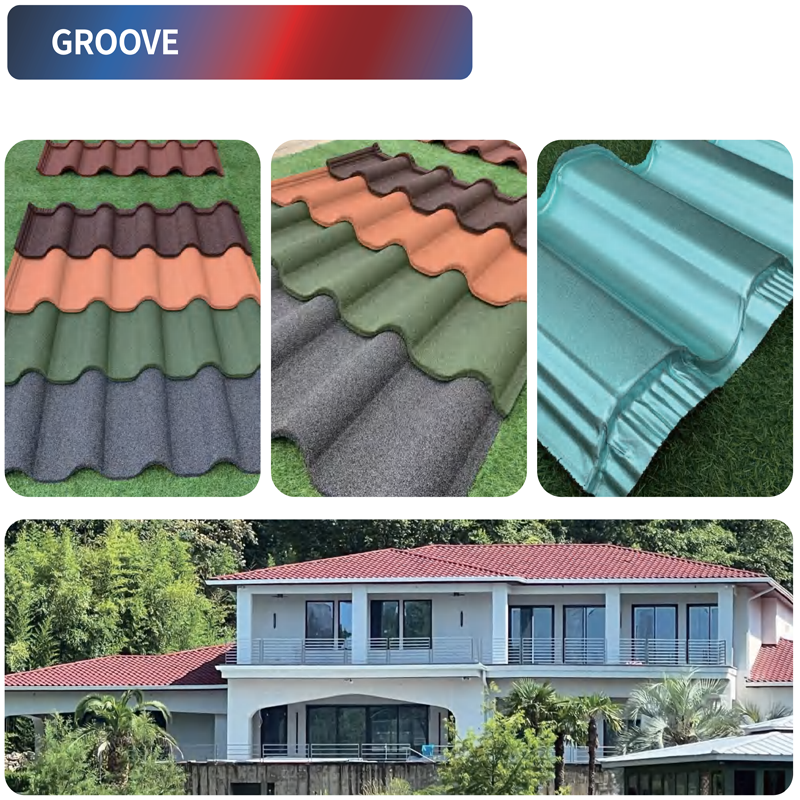

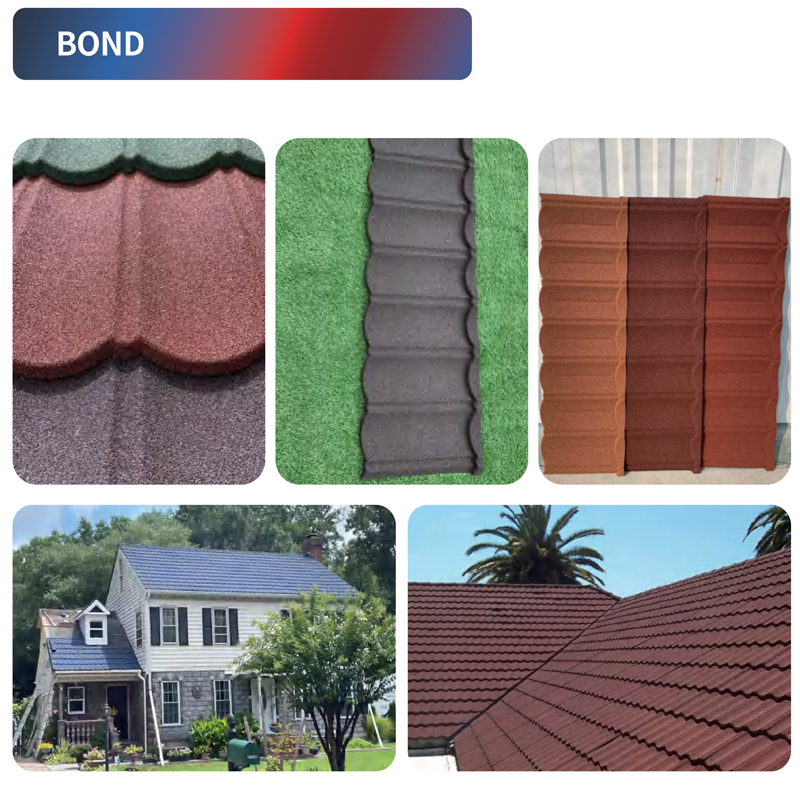

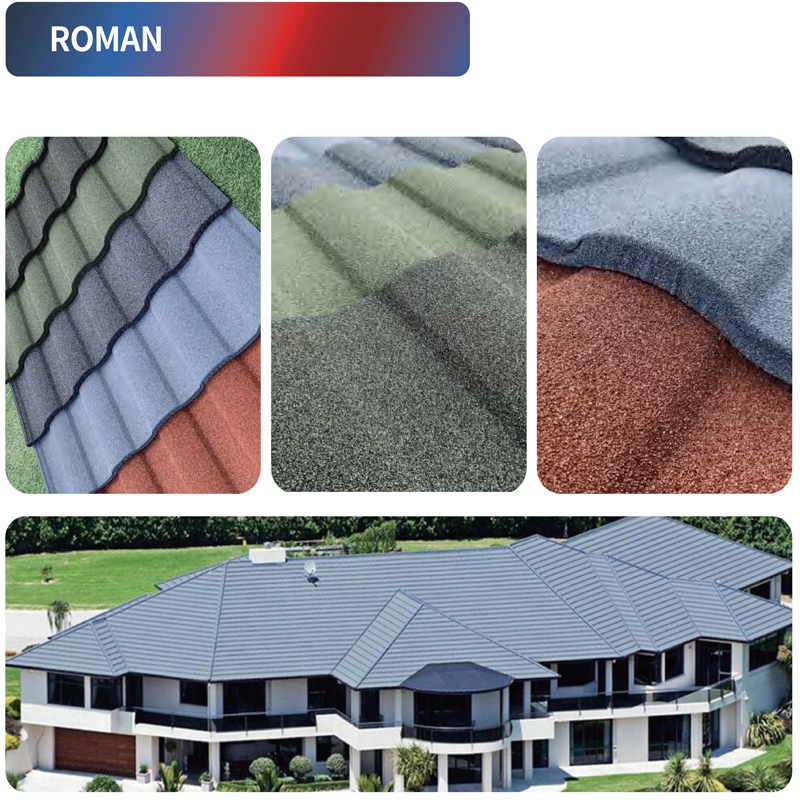

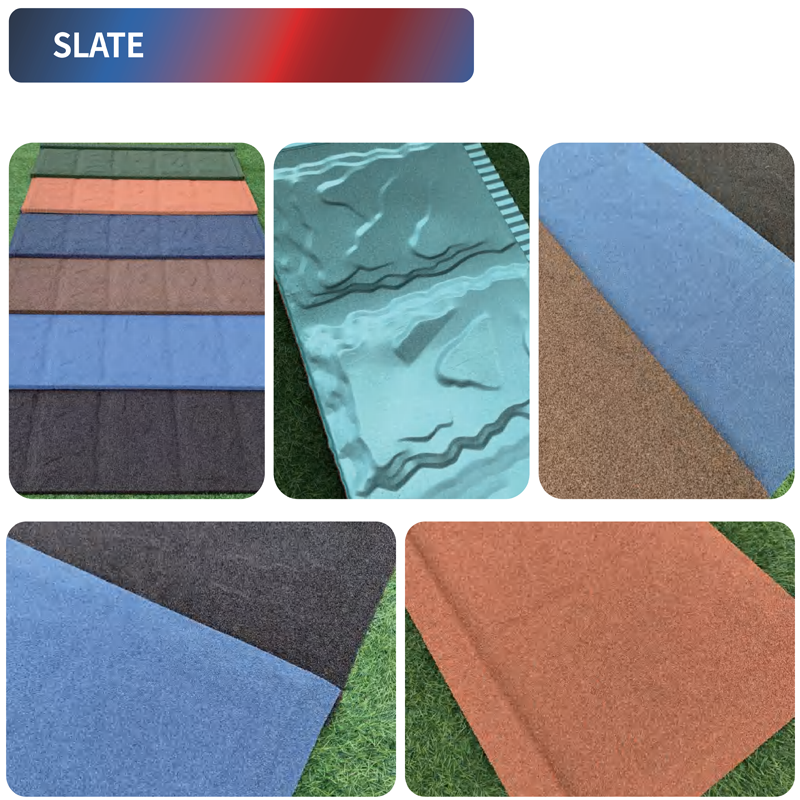

Tile Types | Bond/Classic/Groove/Milano/Roman/Shingles/Slate/Makuti | ||
Standard Size | 1340 × 420mm (effective coverage) | ||
Coverage per Tile | ≈ 0.43–0.48 m² (depends on profile) | ||
Color Options | Red, green, blue, grey, black, brown, etc. | ||
Protective Film | Optional (PE film, thickness 30–80μm) | ||
Standard | ASTM A755, EN 10346 | ||
| Key Features & Advantages | Applications | ||
| 1. Lightweight: Only 4–6 kg/m² — 1/6 of traditional clay/concrete tiles, reduces roof structure cost | Villas: High-end residential roofing | ||
| 2. Strong & Durable: Galvalume base + stone coating — impact-resistant, hail-resistant, wind-resistant (120 km/h) | Resorts & B&Bs: Tourist area roofing — aesthetic and durable | ||
| 3. Weather Resistant: UV-resistant, acid-resistant, salt-spray-resistant — suitable for coastal, acid rain, alpine climates | Residential Communities: Townhouses, garden villas | ||
4. Fast Installation: Lap joint design, can be cut on site — saves labor and time | Commercial Buildings: Clubhouses, showrooms, boutique hotels, restaurants | ||
5. Aesthetic & Versatile: Multiple profiles and colors, stone-like appearance — enhances building value | Roof Renovation: Flat-to-pitch conversion, old tile replacement — reduces roof load | ||
6. Eco-friendly: 100% recyclable metal base — meets green building requirements | Public Buildings: Schools, hospitals, libraries, scenic area facilities | ||
7. Noise & Thermal Insulation: Works with insulation layer — reduces rain noise and heat transfer | Villas: High-end residential roofing |
Why Choose Fanda Stone Coated Metal Roof Tiles?
| Why Choose us? | |||
| 1. Galvalume steel base — better corrosion resistance than standard galvanized | |||
| 2. Natural stone granules — color-stable, no fading | |||
| 3. Multiple tile profiles and colors — custom options available | |||
4. Lightweight and high strength — reduces building structure cost | |||
5. Easy and fast installation | |||
6. 15+ years of steel industry experience — reliable quality | |||
7. Full technical support and after-sales service |

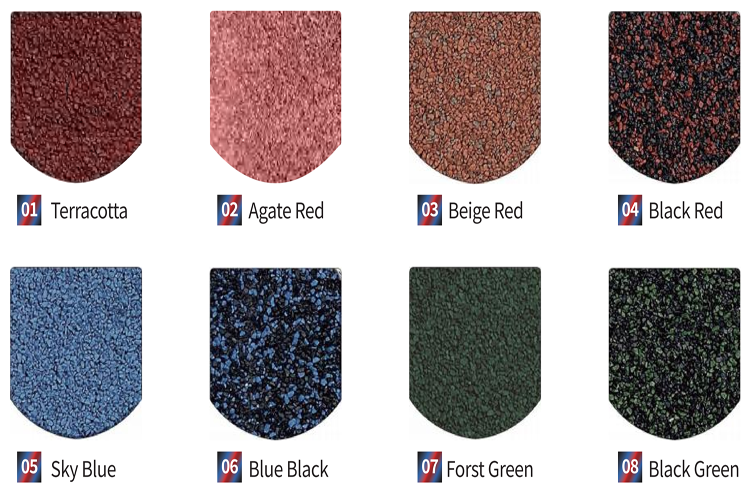

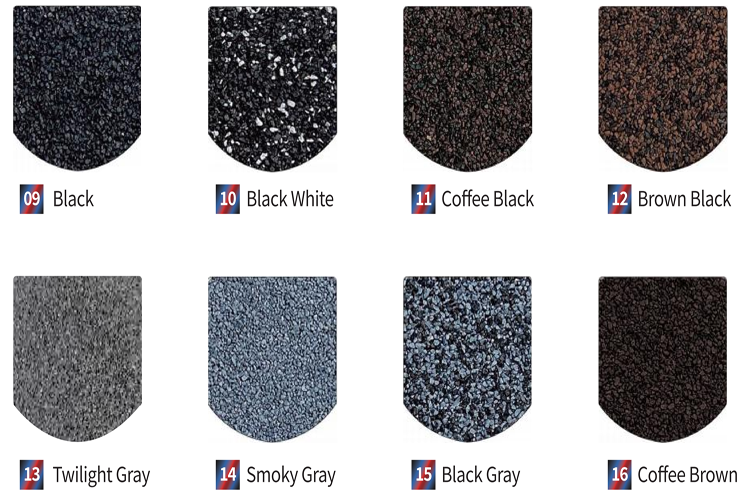

Tiles color chart
Technical Data & Downloads
For detailed product catalog, installation guide, color charts, or custom tile profiles, please contact us.
