Galvanized steel floor decking sheet
| Share | |
|---|---|
| Categories | Roofing Sheet |
| Brand | Fanda Steel Coil & Guardrail Manufacturer |
| Model | DX51D/ASTM A653 |
| Product name | Galvanized steel floor decking sheet |
| Material | Galvanized steel sheet |
| Zinc coating | Z40-Z275 |
| Thickness | 0.7mm-1.2mm |
| width | 600mm, 688mm, 720mm, 750mm, 910mm, 915mm etc |
| length | 1.5meters-11.8meters |
| Steel grade | DX51D/ASTM A653/SGCC |
| Profile | as per our design drawings or customized |
| FOB port | Tianjin or Qingdao port of China |
| Terms of Payment | L/C, T/T |
Detail Information
Galvanized Steel Floor Decking Sheet | Fanda

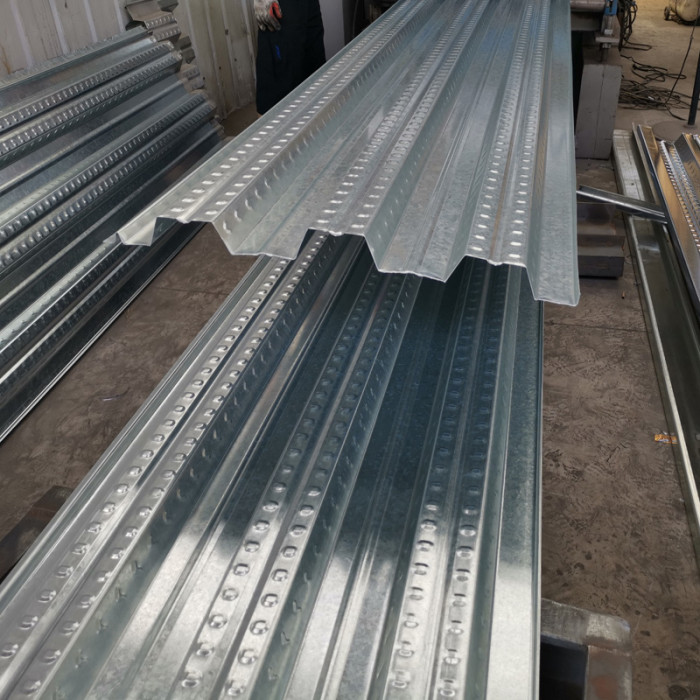

Galvanized steel floor decking sheet is roll-formed from high-quality hot-dipped galvanized steel coil, serving as permanent formwork for concrete slabs in steel-structured buildings. The embossed rib design enhances stiffness and composite action with concrete — requiring minimal shoring during construction and becoming an integral part of the slab after pouring. Fanda offers various profiles (open, closed, re-entrant), widely used in multi-story industrial plants, warehouses, underground parking, commercial complexes, and high-rise buildings.
The specifications of Steel Floor Decking Sheet
| Item | Parameter | ||
| Base Material | Hot-dipped galvanized steel coil (DX51D, S250GD, S350GD) | ||
| Thickness | 0.7mm – 1.2mm | ||
| Width (before profiling) | 1000mm – 1250mm | ||
Effective Width | 600mm – 915mm (depends on profile) | ||
Rib Height | 35mm – 80mm | ||
Rib Spacing | 150mm – 350mm | ||
Length | Customized (1m – 11.8m, per project requirement) | ||
Zinc Coating | Z40 – Z275 (g/m²) | ||
Yield Strength | 235 – 370 MPa | ||
Standard | ASTM A653, EN 10346, GB/T 12755 | ||
| Key Features & Advantages | Applications | ||
| 1. Permanent Formwork Becomes part of the slab after pouring — no formwork removal, saves time and materials | Multi-story Industrial Plants Floor decking for each level | ||
| 2. Fast Construction Dry installation, minimal shoring required — pour concrete directly | Warehouses & Logistics Storage building floor slabs | ||
| 3. High Strength Rib design improves load capacity — works compositely with concrete, reduces rebar usage | Underground Parking Roof decks and floor slabs | ||
4. Corrosion Resistant Hot-dipped galvanized coating provides good rust protection during construction | Commercial Complexes Shopping malls, office building floor decking | ||
5. Utility Friendly Rib cavities can house electrical wires and pipes — saves ceiling space | High-rise Buildings Steel-structured residential and apartment floor slabs | ||
6. Fire Resistance Concrete cover provides complete fire protection — high fire rating | Public Buildings Schools, hospitals, gymnasium floors |
Why Choose Fanda Floor Decking Sheet?
| Why Choose us? | |||
| 1. Base material from own or vetted mills — quality controlled from source | |||
| 2. Multiple profile types: open rib, closed rib, re-entrant — for different design needs | |||
| 3. Thickness 0.7–1.2mm, rib height 35–80mm | |||
4. Custom lengths per drawing — reduces on-site cutting waste | |||
5. Zinc coating Z40–Z275 — reliable rust protection | |||
6. 15+ years of steel industry experience — reliable quality | |||
7. Full technical support and after-sales service |
Technical Data & Downloads
For detailed profile dimension drawings, load performance tables, mill test certificates, or custom profile designs, please contact us.

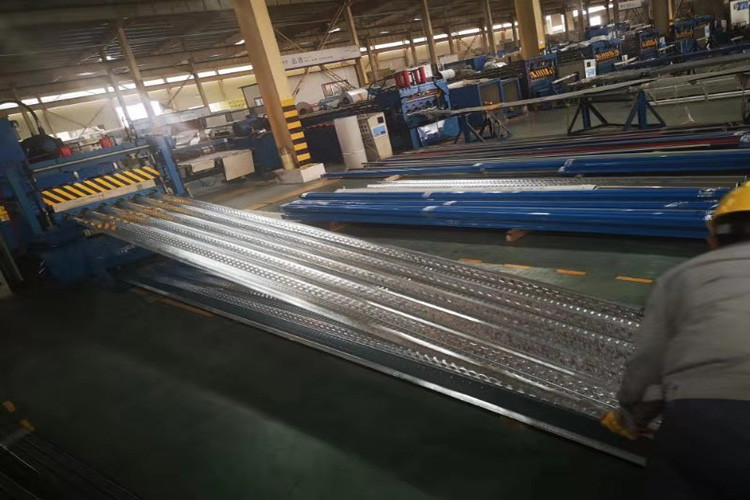

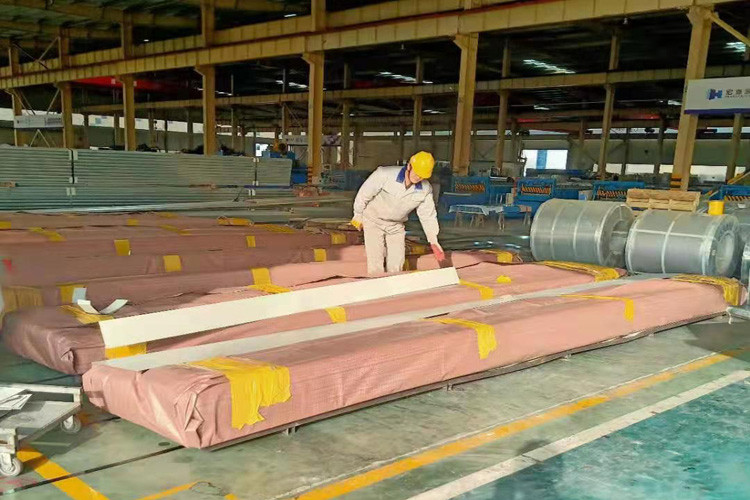

Production workshop of floor decking sheet
